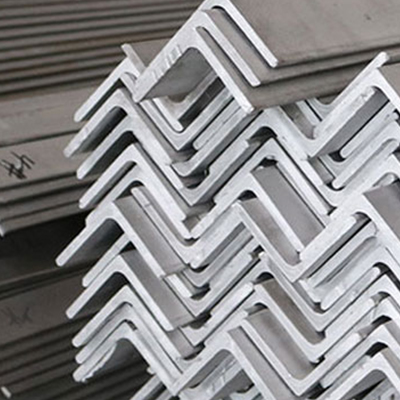

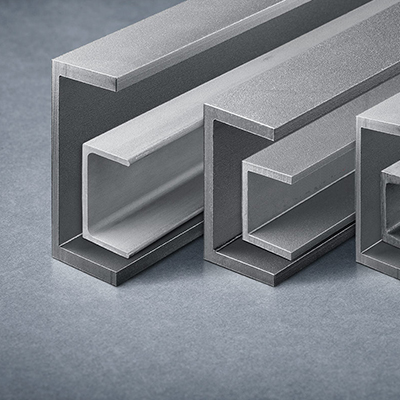

Steel angles and channels are types of steel components utilized in construction and engineering projects. Steel angles have an L-shaped design which serve as crucial support and brace. Channels on the other hand have a C-shape which can be used for beam and column support, framing, and mounting. They are both made from high-strength steel which makes them durable and long lasting. A universal beam has an ‘I’ cross section with its main application in the structural frames of industrial sheds and large buildings. They experience tensile, sheer, and compressive stresses internally. They are also used in the construction of bridges.
While these angles, channels, and beams are available in many different types, sizes, and specifications, an estimate is provided below. In order to get exact details and rates, contact our trained team.
| Product | Description |
| Types of Channels | U channels, Z channels, C Channels, Hat Channel, J Channel |
|---|---|
| Types of Angles | Equal angles, Unequal angles, and bulb angles |
| Grade | 201, 202, J3, 303, 304, 304L, 304LN, 304H, 309, 310, 316, 316L, 316LN, 316H, 316TI, 317, 317L, 317LN, 321, 321H, 347, 347H, 904, 904L, duplex & super duplex SA240 UNS NO. S31803, S32205, S32550, S32750, S32760, SMO 254, 17-4PH, Alloy 20, and more grade as per requirement |
| Specifications | ASTM B-16.11, B-16.9, B-16.28 & MS SS P43, DIN-2527, DIN-2576, DIN-2633, DIN-2634, DIN-2642 |
| Surface Finish | Painted, Hot-dip galvanized, and Black (unfinished) |
| Application | Industrial sheds, large buildings, bridges, roof supports, trailers, etc. |
| Size in mm | Weight Kg/m | Size In mm | Weight Kg/m |
| 75X40 | 7.1 | 200X75 | 22.3 |
| 100X50 | 9.6 | 250X80 | 30.6 |
| 125X65 | 13.1 | 250X82 | 34.2 |
| 150X75 | 16.8 | 300X90 | 36.3 |
| 175X75 | 19.6 | 400X100 | 50.1 |
| Size in mm | Weight Kg/m | Size In mm | Weight Kg/m |
| 100X70 | 11.5 | 225X110 | 31.2 |
| 120X58 | 11.2 | 250X125 | 37.3 |
| 125X70 | 13.2 | 300X140 | 46 |
| 150X75 | 15 | 350X140 | 52.4 |
| 150X150 | 37.1 | 400X140 | 61.5 |
| 175X85 | 19.5 | 450X150 | 72.4 |
| 200X100 | 25.9 | 500X180 | 86.9 |
| 200X150 | 52.05 | 600X210 | 123 |
| Size mm/ Thickness | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 16 | 18 | 20 | 25 |
| Weight (km/m) | |||||||||||
| 20 x 20 | 0.9 | 1.1 | |||||||||
| 25 x 25 | 1.1 | 1.4 | 1.8 | 2.2 | |||||||
| 30 x 30 | 1.4 | 1.8 | 2.2 | 2.8 | |||||||
| 35 x 35 | 1.6 | 2.1 | 2.6 | 2.8 | |||||||
| 40 x 40 | 1.8 | 2.4 | 3.0 | 3.5 | |||||||
| 45 x 45 | 2.1 | 2.7 | 3.4 | 3.5 | |||||||
| 50 x 50 | 2.3 | 3.0 | 3.8 | 4.5 | |||||||
| 65 x 65 | 4.9 | 5.8 | 7.7 | 9.4 | |||||||
| 75 x 75 | 5.7 | 6.8 | 8.9 | 11.0 | |||||||
| 80 x 80 | 7.3 | 9.6 | 11.8 | 14.0 | |||||||
| 90 x 90 | 8.2 | 10.8 | 13.4 | 15.8 | |||||||
| 100 x 100 | 9.2 | 12.1 | 14.9 | 17.7 | |||||||
| 110 x 110 | 13.4 | 16.5 | 19.6 | 24.2 | |||||||
| 130 x 130 | 15.9 | 19.7 | 23.4 | 28.9 | |||||||
| 150 x 150 | 22.8 | 27.2 | 35.8 | 39.9 | 11.1 | ||||||
| 200 x 200 | 36.6 | 48.5 | 54.0 | 60.0 | 73.6 | ||||||
Get in touch with us to get an instant quote. We are determined to help you find the product that best fits your needs at the best possible rates, even if that means custom building you one that does.
